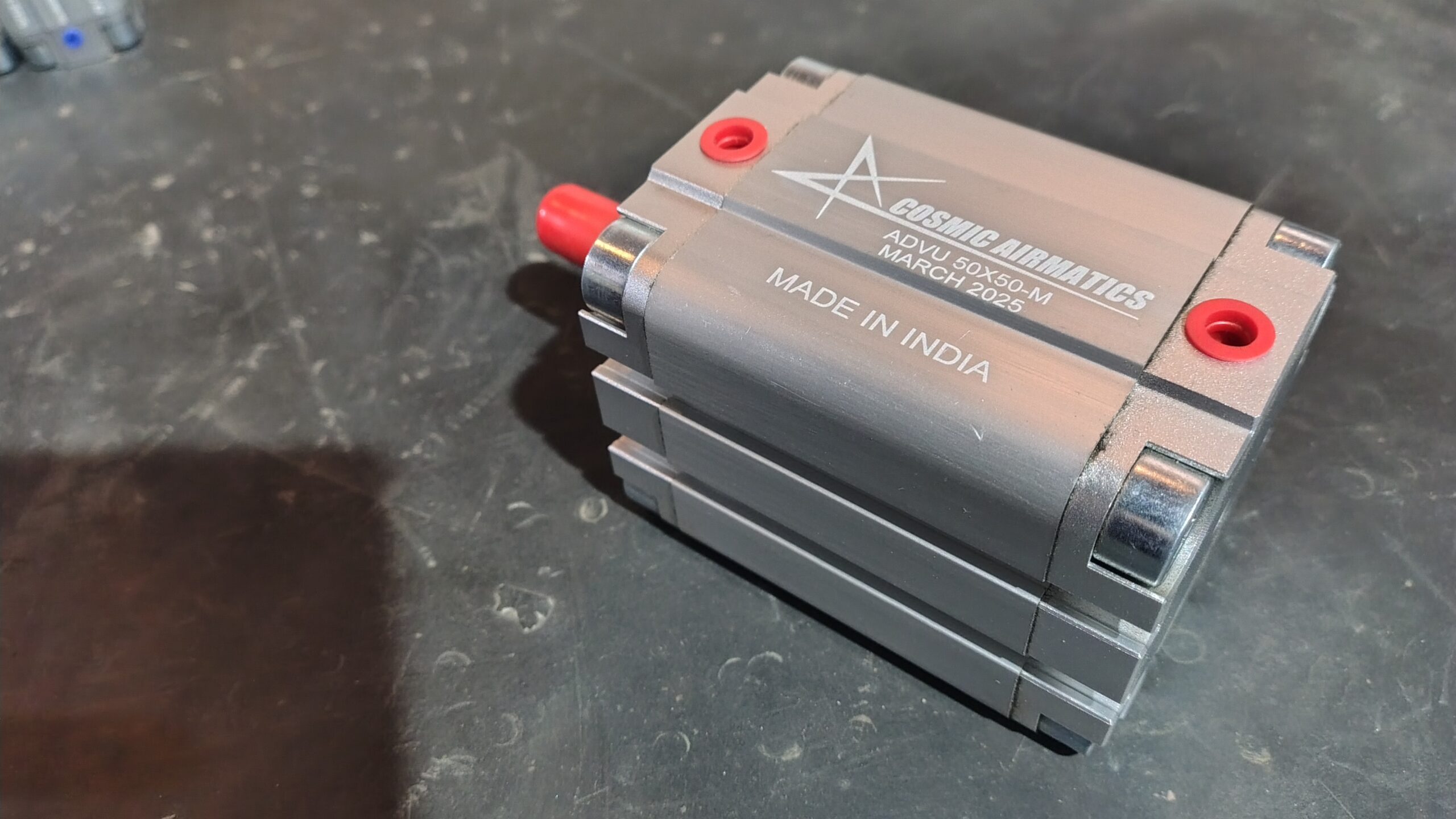

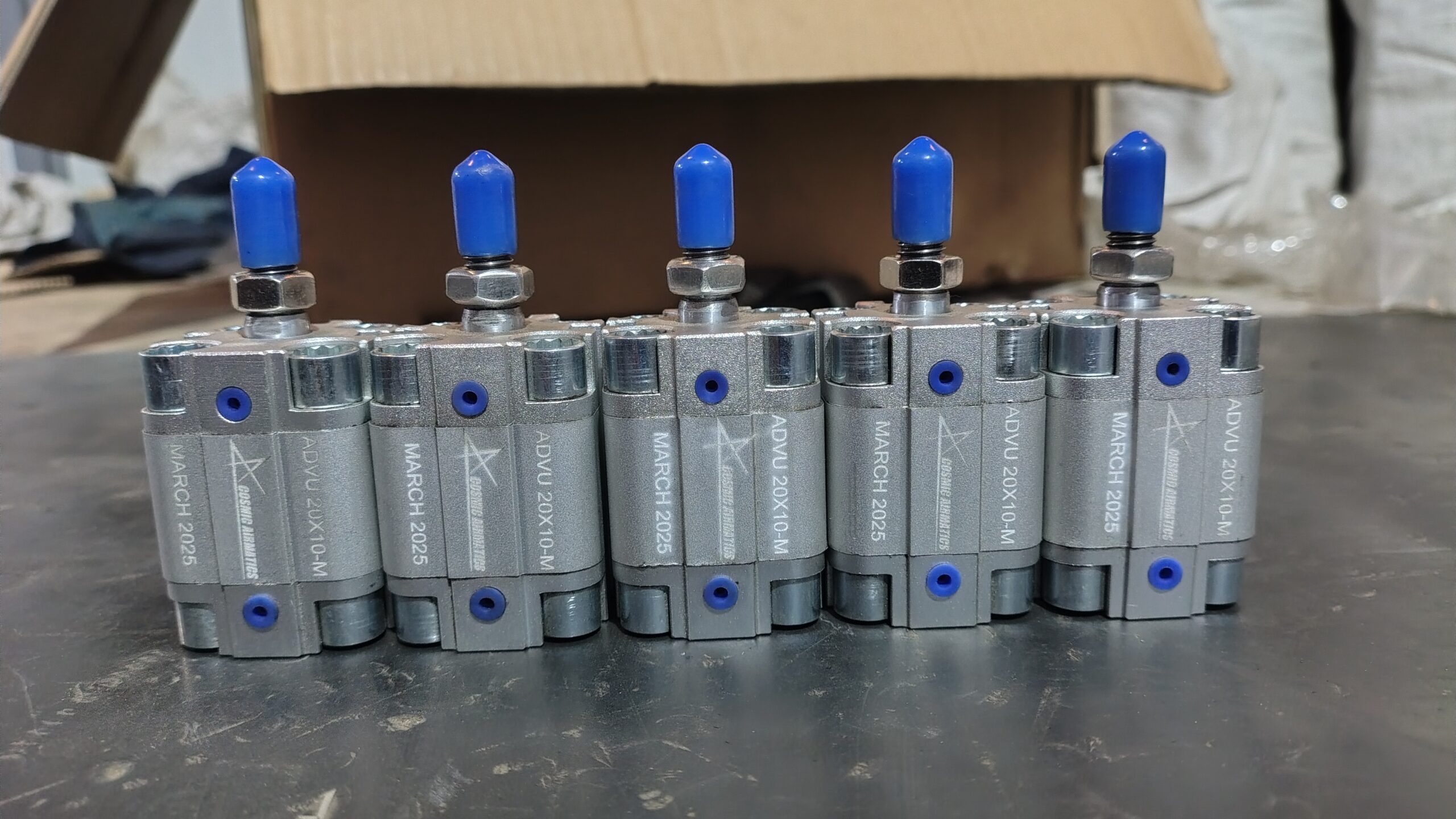

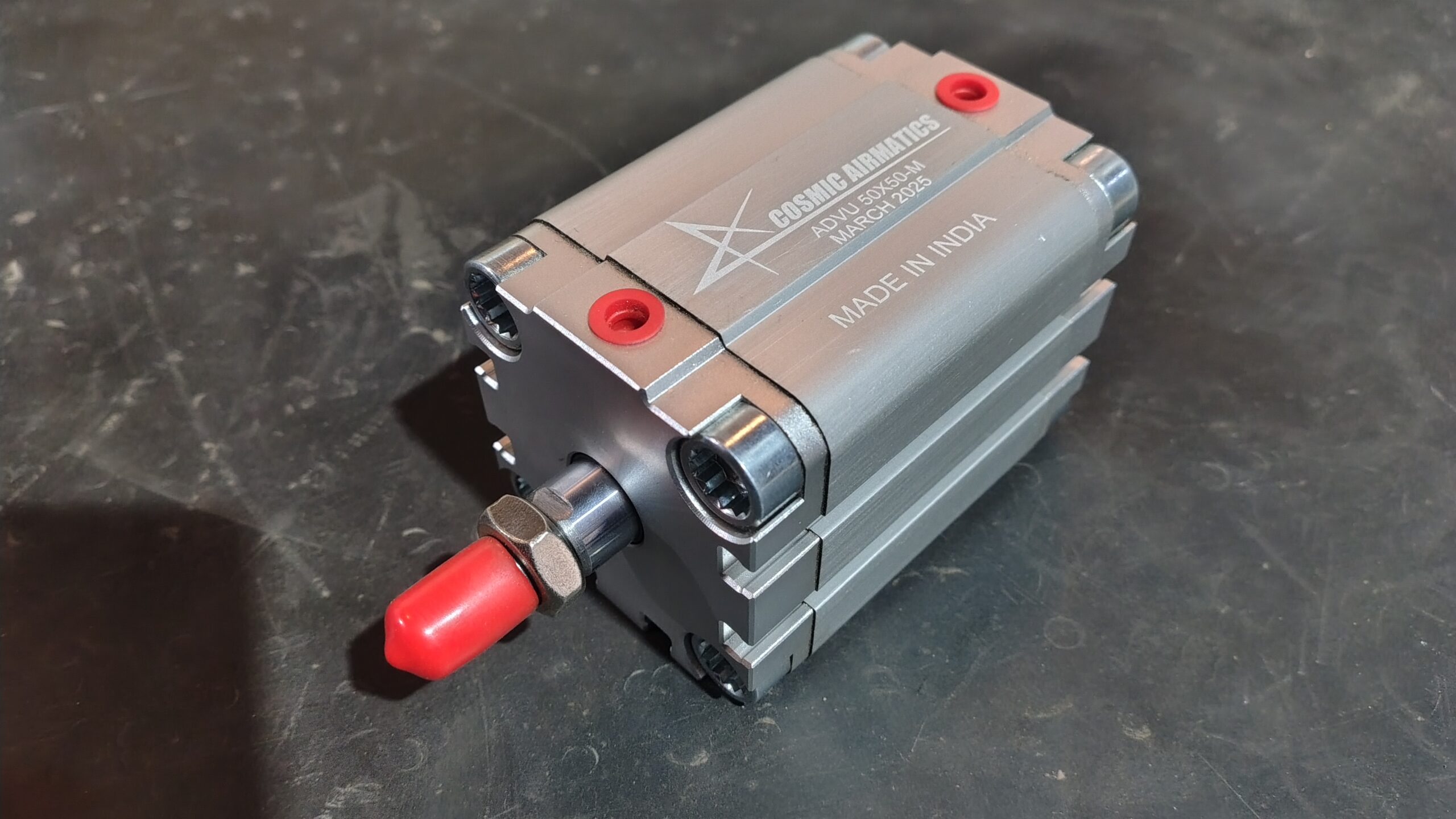

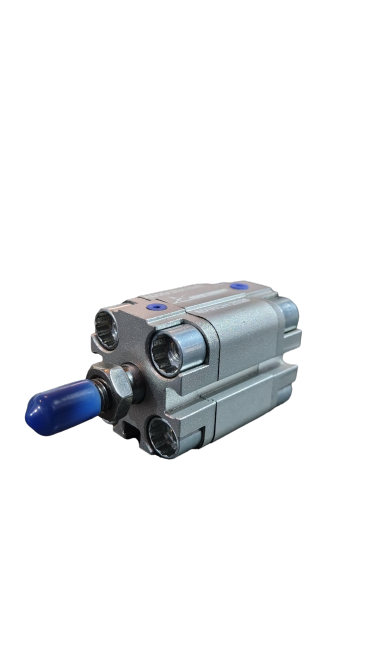

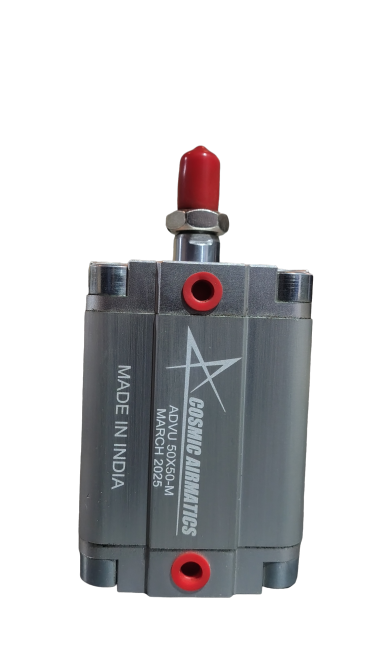

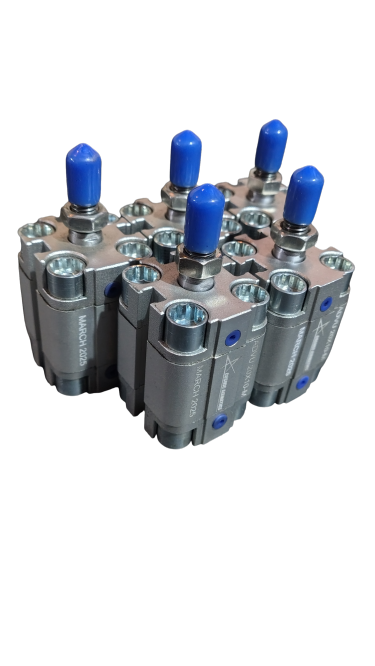

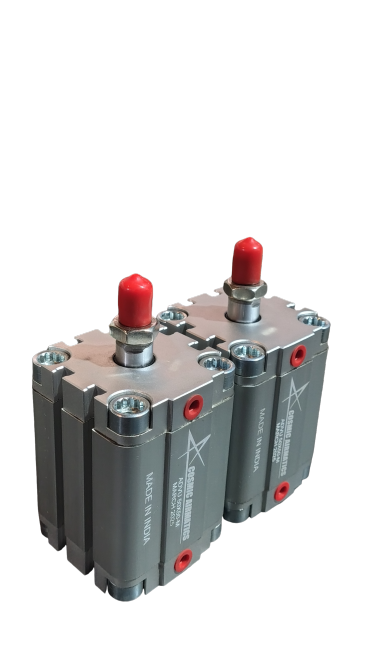

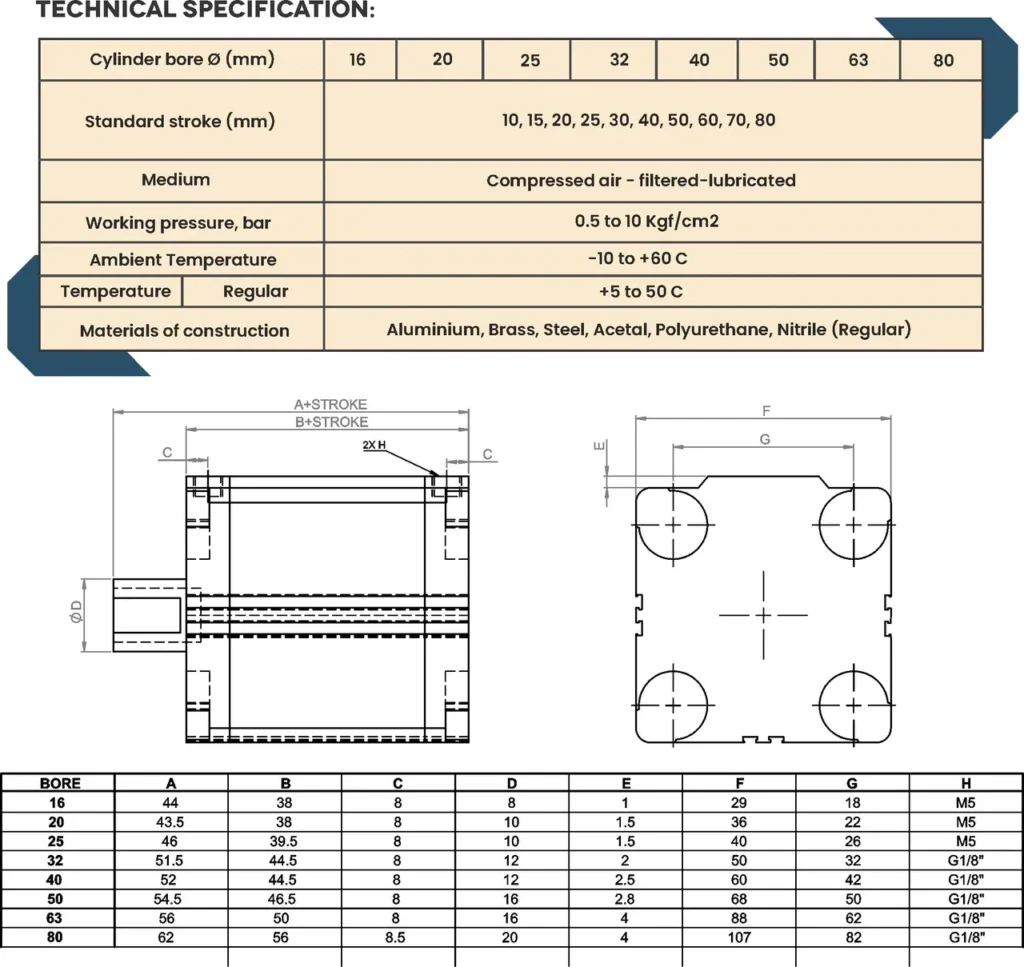

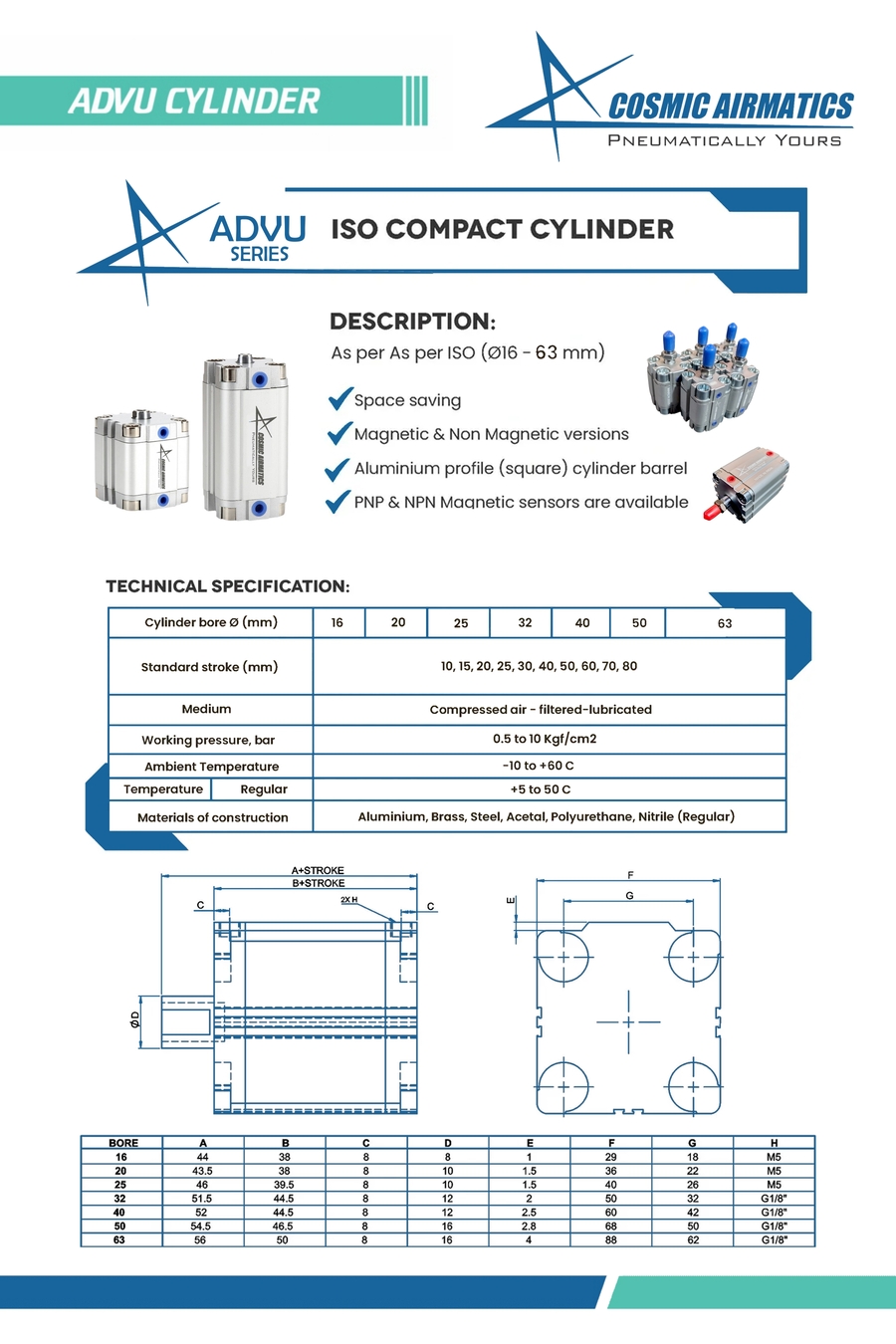

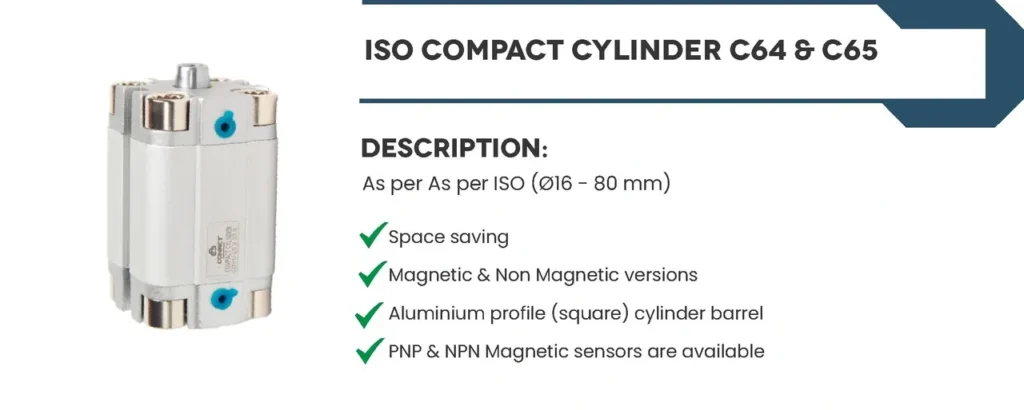

ADVU Series Pneumatic Cylinder

Thrust and Pull Table

Inner dia D (in mm)	Dia of piston D (in mm)	0.2		0.3		0.4		0.5		0.6		0.7		0.8		0.9
Inner dia D (in mm)	Dia of piston D (in mm)	Thrust	Pull	Thrust	Pull	Thrust	Pull	Thrust	Pull	Thrust	Pull	Thrust	Pull	Thrust	Pull	Thrust	Pull
16	6	40.2	34.4	60.3	51.6	80.4	68.8	100.5	86	120.6	103.2	140.7	120.4	160.8	137.6	180.9	154.8
20	8	62.8	52.8	94.2	79.2	125.7	105.6	157.1	132	188.5	158.4	220	184	251	211.2	282	237.6
25	10	98.2	82.4	147.3	123.4	196.3	164.8	245	206	294	247	344	288.4	393	329.6	442	370.8
32	12	160.6	138	240	207.3	321.2	276.4	401.5	345.5	481.8	414.6	562	483.7	624.4	522.8	721.5	603.2
40	16	251	211	377	317	503	422	628	528	754	633	880	738	1006	844	1132	949
50	20	393	331	589	497	785	662	982	828	1178	993	1374	1158	1571	1319	1767	1476
63	20	618	546	927	819	1236	1092	1545	1365	1854	1638	2163	1911	2490	2240	2781	2493
80	25	1004	906	1506	1360	2008	1814	2510	2268	3012	2722	3514	3176	4020	3630	4522	4084
100	25	1571	1431	2356	2146	3142	2861	3928	3576	4714	4291	5500	5006	6280	5887	7056	6768
125	32	2456	2234	3684	3351	4912	4468	6140	5585	7368	6702	8596	7819	9820	9170	11048	10320
160	40	4020	3660	6030	5490	8040	7320	10050	9150	12060	10980	14070	12810	16080	15070	18090	16830
200	40	6280	5880	9420	8820	12560	11760	15700	14700	18840	17640	21980	20580	25130	24110	28270	27000
250	50	9812	9418	14718	14127	19624	18836	24530	23545	29436	28254	34342	32963	39248	37672	44154	42381
